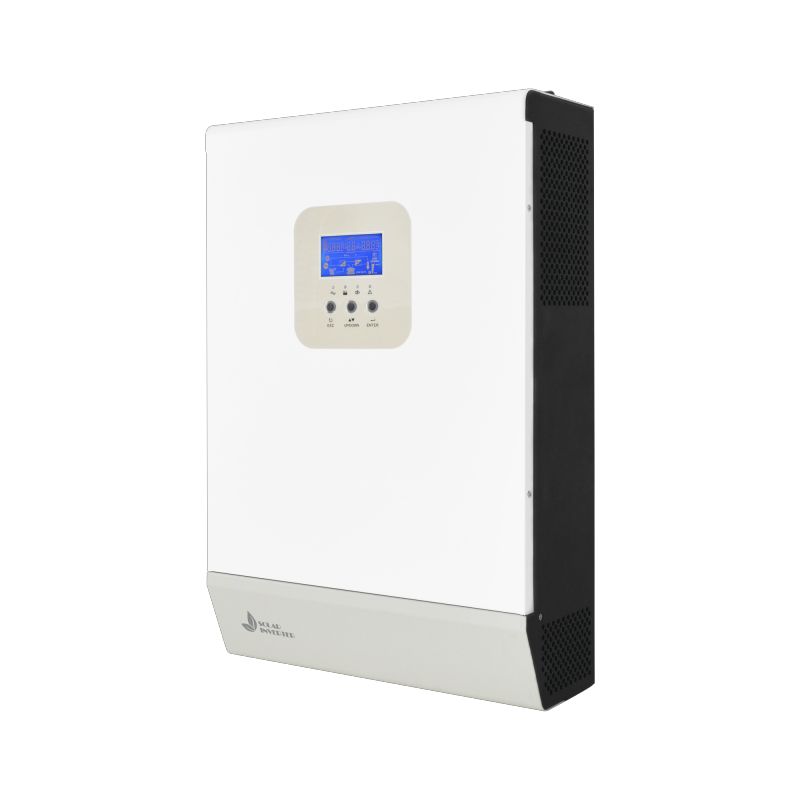

Sale 3kw 5kw 8kw 10kw Solar Energy Inverter Pure Sine Wave Solar Off Grid Inverter

Off grid Hybrid Solar Inverter 3kw 5kw 8Kw 10KW Solar Inverter off Grid Hybrid Solar Inverter

Model	3KW 24V	5KW 48V	8KW 48V	10KW 48V
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	20-30VDC/40-60VDC
PV input voltage(V)	450VDC
PV Input Current (A)	16A	16A	22A+22A		22A+22A
Max. Charging Current (A)	60A	100A	200A
MPPT Strings	1	1	2
Rated Output	3000W	5000W	8000W	10000W
Output voltage	120VAC/220VAC Single phase or 110VAC/220VAC Split phase
Output frequency	50HZ/60HZ
Parallel connection	YES, 1-6 units Connection				7800W	9880W	10400W
AC input range	90~140VAC/ 170~VAC
Rated AC Output and UPS Power (W)	3000W	5000W	8000W	10000W
Peak Power (off grid)	2 times of rated power, 10 S
Current Harmonic Distortion	THD<3%(Linear load<1.5%)
Operating Temperature Range (℃)	-25~60℃, >45℃ Derating
Cooling	Fan
Noise (dB)	<30
Communication with BMS	RS485; CAN
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	3 years

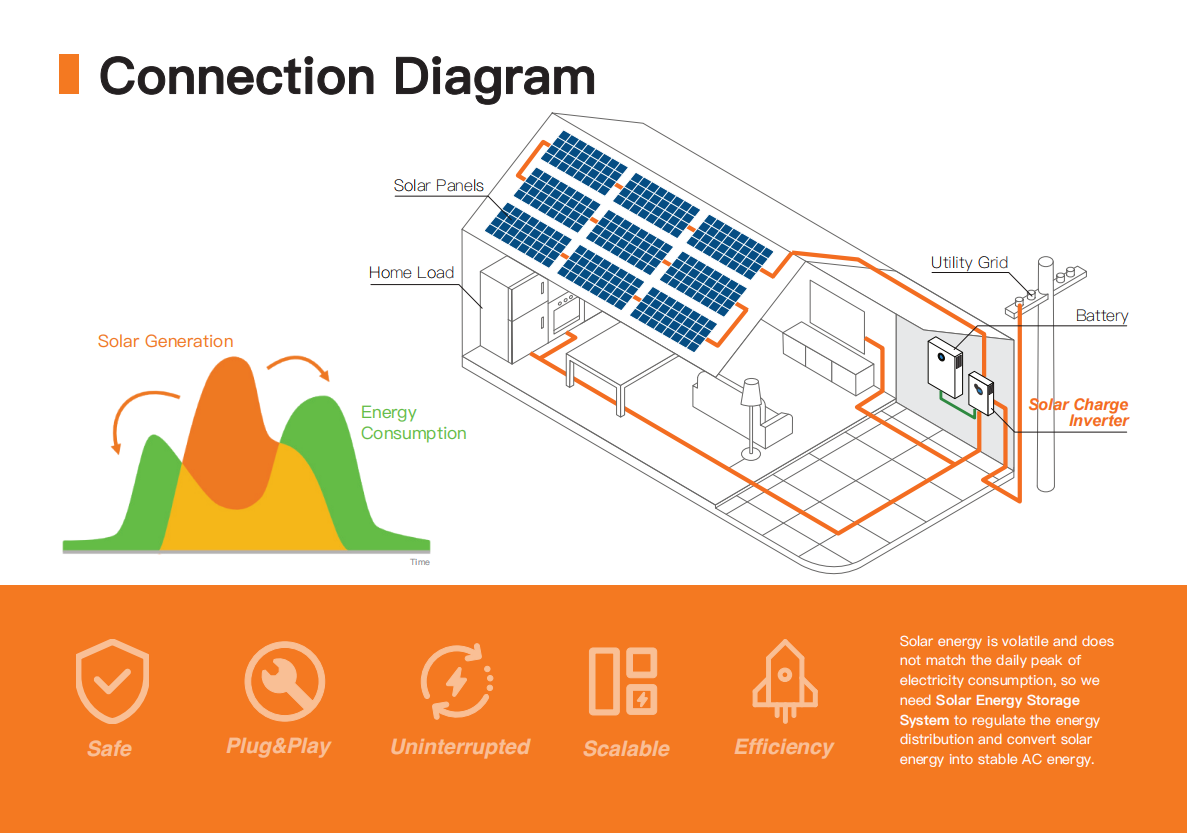

System Architechture

Package details

PROJECT CASE

Q1:This brand can be selected?

Yes, we have DEYE, GROWATTS,MEGAREVO etc brand can be seleteted.

Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.

Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.

Q4:Can I have a sample for testing?

Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.

Q5:Can Iadd my logo on the products?

Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.

Q6 :Do you have inspection procedures?

100% self-inspection before packing.

We located in APEC High-Tech Industrial Park, Hefei National Hi-Tech Industrial Development Zone, is a professional and high-tech enterprise that engaged in wind generation, photovoltaic system and other renewable energy R&D, manufacturing and marketing.
Sunway power main products are PV solar system, portable solar system, Solar panels, MPPT solar and wind controller series, PV and wind system controller series, solar inverter. Our products had many intellectual property, and gained 12 national patents, software copyright certificate, passed the testing from national testing organization and CE Certification Institution. Also we have registered brand successfully. Our company has been rated Hi-tech Enterprise and gained ISO-9001certificate since August, 2011 year.
