8/10/12Kw Rated Power Pure Sine Wave Hybrid Solar Inverter 40v 60v Peak Power 2 Times

Deye hybrid solar inverter SUN-8/10/12K-SG04LP3-EU is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operate on such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.

SUN-8/10/12K-SG04LP3-EU
1. Colorful touch LCD, IP65 protection degree 2. 6 time periods for battery charging/discharging

3. Max. charging/discharging
current of 240A

4. Frequency droop control, Max.16pcs parallel

5. DC couple and AC couple to retrofit existing solar system

6.Support storing energy from diesel generator 7. 48V low voltage battery, safe and reliable

8. Unique Smart Load application and
Grid peak shaving function

9. 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency airconditioner works well

Model	SUN-6K-SG04LP3-EU	SUN-8K-SG04LP3-EU	SUN-10K-SG04LP3-EU	SUN-12K-SG04LP3-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40~60V
Max. Charging Current (A)	150	190	210	240
Max. Discharging Current (A)	150	190	210	240
External Temperature Sensor	Optional
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	7800	10400	13000	15600
PV Input Voltage (V)	550 (160~800)
MPPT Range (V)	350-650
Start-up Voltage (V)	160
PV Input Current (A)	17+17		26A+13A	34+17
No.of MPPT Trackers	2
No.of Strings Per MPPT Tracker	1		2+1	2+2
AC Output Data
Rated AC Output and UPS Power (W)	6000	8000	10000	12000
Max. AC Output Power (W)	6600	8800	11000	13200
Peak Power (off grid)	2 times of rated power, 10 S
AC Output Rated Current (A)	9.1/8.7	12.1/11.6	15.2/14.5	18.2/17.4
Max. Continuous AC Passthrough (A)	35A	40A	50A
Output Frequency and Voltage	50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type	Three phase
Current Harmonic Distortion	THD<3%(Linear load<1.5%)
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
Integrated	PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection
Output Over Voltage Protection	DC Type II / AC Type II
Certifications and Standards
Grid Regulation	VDE 0126,AS4777,NRS2017,G98,G99,IEC61683,IEC62116,IEC61727
Safety Regulation	IEC62109-1, IEC62109-2
EMC	EN61000-6-1, EN61000-6-3
General Data
Operating Temperature Range (℃)	-25~60℃, >45℃ Derating
Cooling	Fan
Noise (dB)	<30
Communication with BMS	RS485; CAN
Weight (kg)	33.6
Size (mm)	670×420×233mm
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years

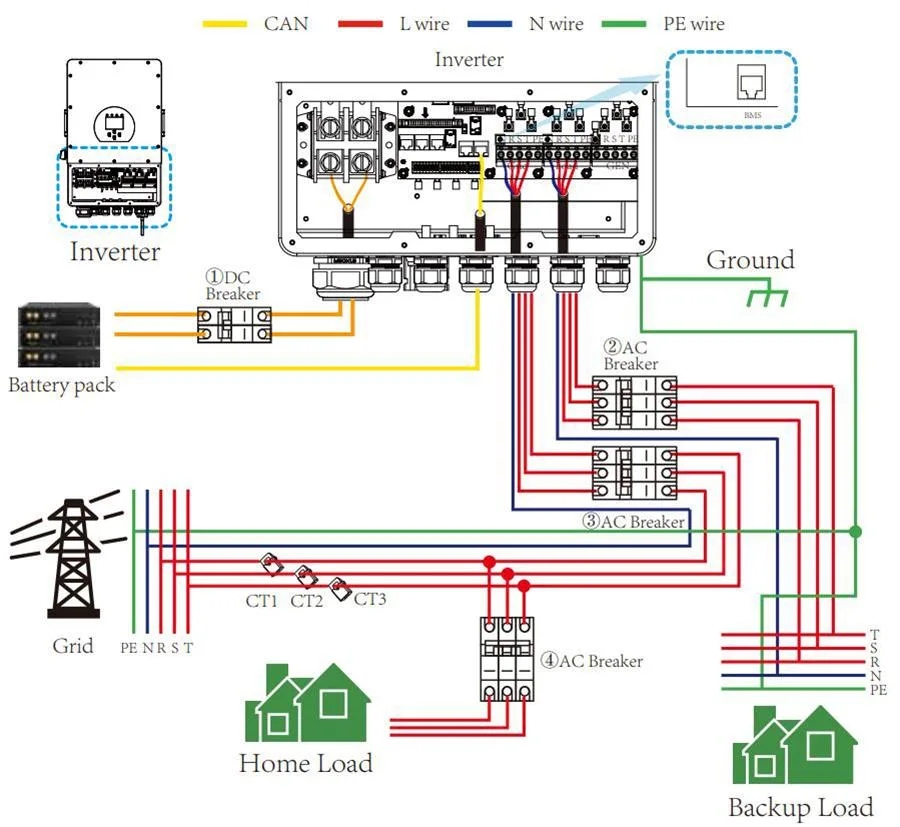

System Architechture

The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system.

- Generator or Utility
- PV modules

Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.
