15kw Solar Power System for Telecom Base Station 48VDC BTS Hot Pluggable Rectifier Module

Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC systems. It can provide reliable power supply in the case of a power failure completely in plant or substation. The traditional DC systems connect battery pack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.

Key Features:

1.Adopt advanced MCU microprocessor control technology.
2.Advanced MPPT Technology,High converting efficiency higher than 97% for minimizing energy loss.
3.Reversed current protection at night, over voltage and reverse polarity protection.
4.Capable of selecting different charging mode for various types of batteries.
5.Protection degree:IP55.
6.Industy-leading power density compact size and high reliability.
7.Doorframe designed with waterproof structure, posted on the seal and equipped with waterproof lock on the door double insulation design.
8.Cabine adopt quality galvanized sheet or aluminum coated steel sheet as material, surface coating anti-UV power.
9.Suitable for outdoor installation.

INPUT
MPPT Range @Operating Voltage	60 ~115VDC
Maximum PV Array Open Circuit Voltage	145VDC
Maximum PV Array Power	3000W
OUTPUT
Nominal Battery Voltage	42-58VDC
Maximum Charge Current	50A
Maximum Efficiency	98%
Charging Method	Three stages: bulk, absorption and floating
PROTECTION
Overload Protection	> 110% : audible alarm
Overcharge Protection	Yes
Polarity Reversal Protection @Solar Cell & Battery	Yes
INDICATORS
LCD Panel	LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED Display	Three indicators for solar, charging, and load status
Rectifier Module
Rated Input Voltage	220V
AC Input Voltage Range	90-290V
AC Input Frequency Range	45-65HZ
Power Factor	≥0.99
Efficiency	>92%
Rated Output Voltage	-48V
Rated Output Current	0-50A
Voltage Range	42-58V
ENVIRONMENT
Humidity	0 ~ 100% RH (No condensing)
Operating Temperature	-20°C to 55°C
Storage Temperature	-40°C to 75°C
Altitude	0 ~ 3000m

Solar Panels

> 30 years Warranty

> 400-700W Mono-minute models
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance

Outdoor controller cabinet

> MPPT solar charger module >Max.Efficiency 99% >Type II SPD and DC side >Rectifer module >Support Lithium battery and gel battery > with backup power supply >IP55 Outdoor

>Smart monitor control center

lithium Battery

>Outdoor or indoor type > 19 inch type lithium battery >Capacity from 5KWH-20Kwh can be selected >A grade cells >6000 times deep cycle

Mounting Structure

>PV Mounting system >Mounting Rail and rail spice kits. >AI6005& SUS 304 Bolt. >Mid & End Clamps:35,40,45,50mm

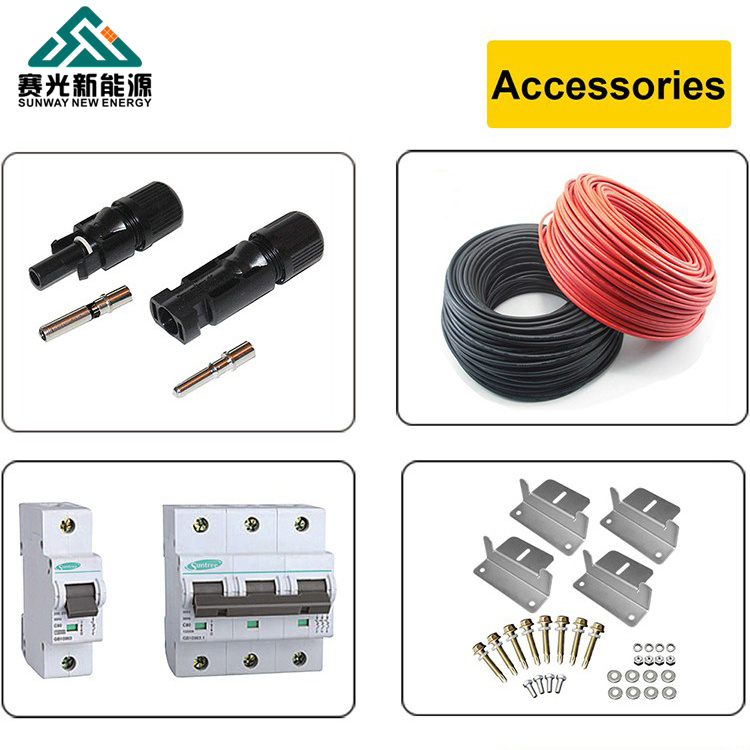

Accessories

>Cables 4MM2 PV > 10MM2/16MM2 Battery cable >Connectors MC4 >DC breaker/ Isolator

Q1:Are you a factory or trade company?

We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.

Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.

Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.

Q4:Can I have a sample for testing?

Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.

Q5:Can Iadd my logo on the products?

Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.

Q6 :Do you have inspection procedures?

100% self-inspection before packing.

We located in APEC High-Tech Industrial Park, Hefei National Hi-Tech Industrial Development Zone, is a professional and high-tech enterprise that engaged in wind generation, photovoltaic system and other renewable energy R&D, manufacturing and marketing.
Sunway power main products are PV solar system, portable solar system, Solar panels, MPPT solar and wind controller series, PV and wind system controller series, solar inverter. Our products had many intellectual property, and gained 12 national patents, software copyright certificate, passed the testing from national testing organization and CE Certification Institution. Also we have registered brand successfully. Our company has been rated Hi-tech Enterprise and gained ISO-9001certificate since August, 2011 year.
